Transdermal diffusion system and Dissolution tester

เครื่องมือวิทยาศาสตร์

USP Apparatus 1/2/5/6 Universal Dissolution Tester

Available in 8,12, 15, and 18-vessel systems
Perform comparative dissolution studies, generic vs. innovator, in the same environment
Built-in heater-circulator for uniform temperature control
Manual or automated sampling
Dual filtration supported: sample probe pre filter followed by in-line syringe filteration
Tablet dropping tray simultaneously dispenses dosage into each vessel
Storage compartments for paddles and baskets
Backlit LED lighting for easy visual observation of the dissolution process
Stores up to 100 methods
Three security levels and full audit trail
21 CFR Part 11 tools, USP, ASTM, EP, JP, CP compliant
Compatible with 1 L, 2 L, 4 L, and small volume vessels
Expandable to 2 or 3 speed zones
Compatible with basket, paddle, paddle over disk, and rotating cylinder
Compatible with the Logan PERMETRO system for bioavailability and pilot BE studies
Compatible with automated sampling system “
Optional individual automated digital temperature probes in each vessel for better temperature monitoring “
Dual vessel cover design eliminates media evaporation

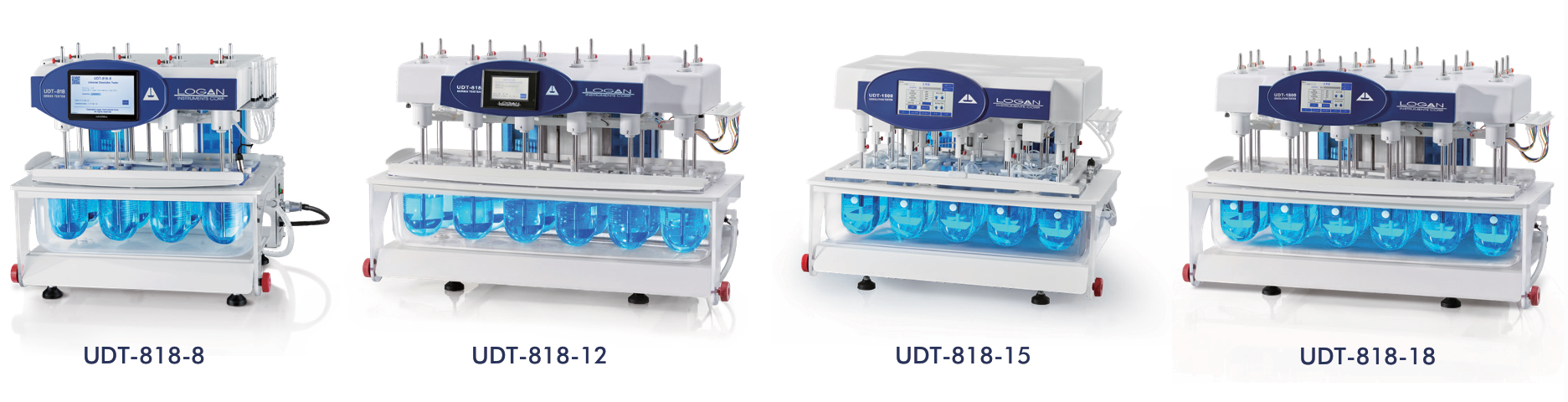

UDT-818-8/12/15/18	Auto Sampling system
Speed: 25-250 rpm ±1 rpm	Auto controller and sample collector
Resolution: 0.1 rpm	Precision syringe pump
3/8 inch shafts: 8/12/15/18 ea.	Sample collector: 1-10 mL
Paddle blades: 8/12/15/18 ea.	HPLC vial rack
40 mesh baskets: 8/12/15/18 ea.	Test tube rack
Built-in heater-circulator	Collection: up to 20 time points per sample rack
Temperature range: ambient to 45 °C ± 0.5 °C or better	Volumetric accuracy: 0.1 mL
Waterbath: One piece molded PETG waterbath	Users: 100
Power: 220 V AC, 50/60 Hz	Storage up to 100 methods
	Multi-language support
	Built-in printer
	Color touch screen
	Power: 220 V AC, 50/60 Hz

Aliquot or full media replacement sampling programmability
Dry heat technology: no waterbath
Bubble-free system with motorized tilt to purge air bubbles at each time point
Two programmable speed zones per console
Several cell volumes and orifice diameters to choose from
Individual cell temperature monitoring directly below the membrane surface
Independent sampling fluidics per 6-cell console eliminate cross-contamination risk
Environmental protective cover
21 CFR Part 11, USP, EP, JP, CP compliant

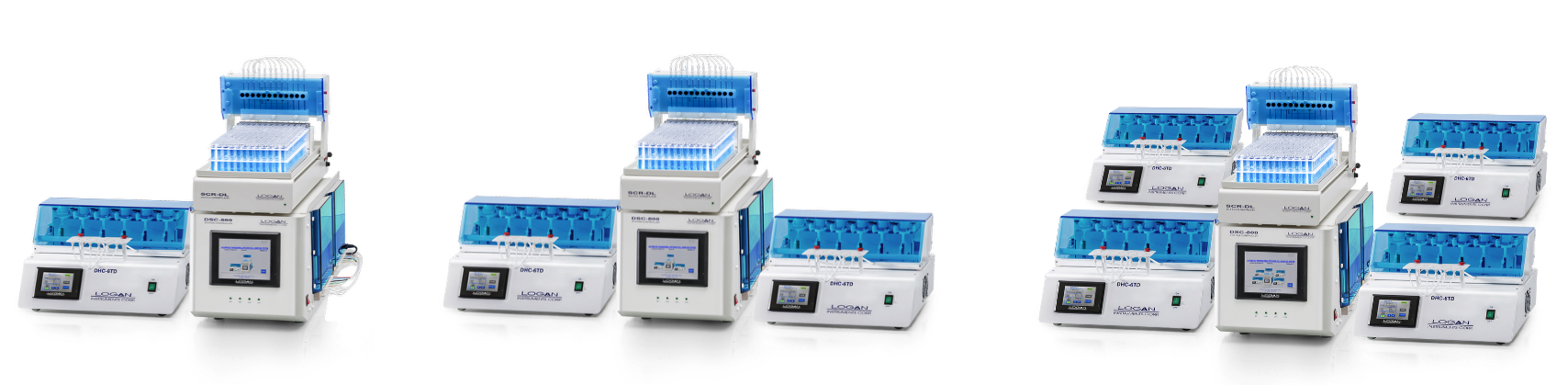

DHC-6TD Drive console	Automated Sampling system
Cell positions: 6 per console	Precision syringe pump
Speed control zones: 2 zones per console	Sample collection: 1-10 mL
Speed: Programmable 100-1000 rpm	Collection: up to 20 time points
Temperature: ambient to 45℃ +/- 1 ℃	Volumetric accuracy: 0.1 mL
Stirring: PVDF-coated magnetic bar	Storage up to 20 methods
Motorized tilting: Yes	Multi-language support
Power: 220 V AC, 50/60 Hz	Built-in printer
	Color touch screen

Aliquot or full media replacement sampling programmability
Automated tilting feature ensures a bubble-free environment under the membrane
Bubble-free water jacketed cells work with synthetic or biologic membranes
Two programmable speed zones per console
Several cell volumes and orifice diameters to choose from
Independent sampling fluidics per 6-cell console eliminate cross-contamination risk
Environmental protective cover
21 CFR Part 11, USP, EP, JP, CP compliant

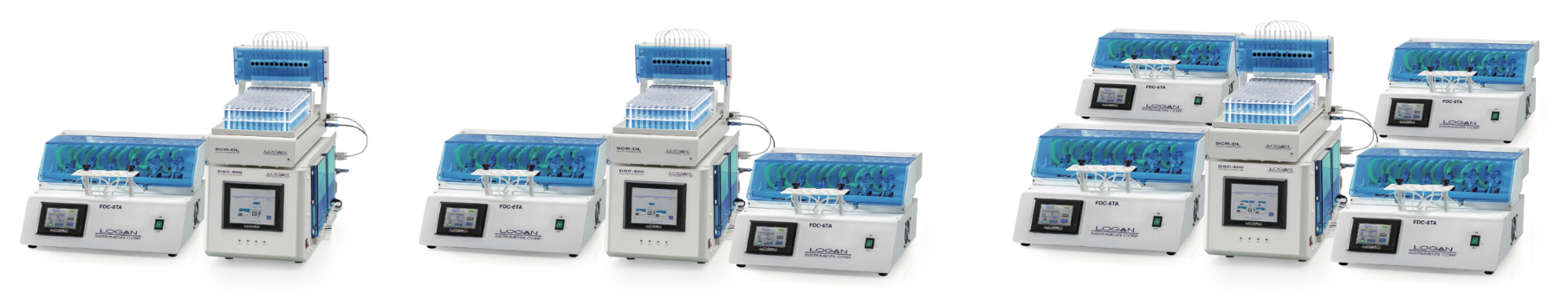

FDC-6TA Drive console	Automated Sampling system
Cell positions: 6 per console	Precision syringe pump
Speed control zones: 2 zones per console	Sample collection: 1-10 mL
Speed: Programmable 100-1000 rpm	Collection: up to 20 time points
Temperature: ambient to 45℃ +/- 1 ℃	Volumetric accuracy: 0.1 mL
Stirring: PVDF-coated magnetic bar	Storage up to 20 methods
Motorized tilting: Yes	Multi-language support
Power: 220 V AC, 50/60 Hz	Printer included
	Color touch screen
